FABRIC WRAPPED GLASS FIBER ACOUSTIC WALL AND CEILING PANELS MANUFACTURER & SUPPLIERS IN INDIA.
Envirotech Systems manufacturer of Fabric Wrapped Glass Fiber Acoustic Panel System provides best NRC value and aesthetically pleasing look for Wall and Ceiling. Glass Fiber Acoustic panel having Jute fabric finish for controlling the sound reverberation and echo. Envirotech Fabric acoustic Panels are high performance acoustical products with an exceptional visual appearance in Fabric texture. Fabric Acoustical panels come in a variety of configurations to meet all interior and acoustical requirements, provide full absorption through Glass Fiber subtracts. NRC System can be utilised as per choice of the Architect or acoustic consultants’ requirement. 50mm thick Rockwool 48kg/m3 density to increase sound absorption value as per Acoustic Consultant’s design.

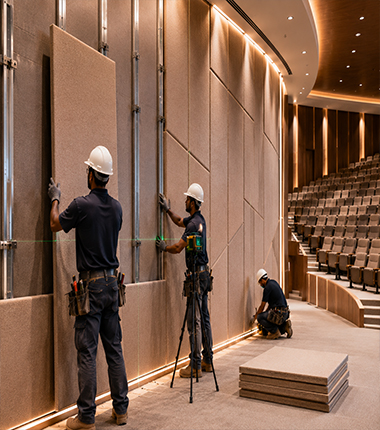

Fabric Wrapped Glass Fiber Acoustic Panels for Walls. Acoustical Wall Panelling with square edges made of fiber glass substrate 25mm thick and wrapped on the front side with an acoustically transparent fabric with an option of colours as per the choice of the Architect/Acoustic consultant of size 600x600mm, 600x1200mm, 600x1800mm, or 600x2400mm providing a minimum sound absorption level of 0.90 NRC. Glass fiber panels having FR rating Class 1 and P. Installation of Acoustic Fabric panels can be done over Impaler clips with construction adhesive or with NRC System with 50mm high GI Frame work infilled with 50mm thick Rockwool, GI frame work shall be covered with Ply strip or Perforated MDF board and then Fabric Panels Pasted through construction adhesive over Impaler. Fabric Wrapped Acoustic Wall Panel fixing as per the instructions lay down by the manufacturer
Technical Specification of Fabric Wrapped Glass Fiber Panels
- Fabric Wrapped Glass Fiber Acoustic Panels for Walls. Acoustical Wall Panelling with square edges made of fiber glass substrate 25mm. thick and wrapped on the front side with an acoustically transparent fabric with an option of colours as per the choice of the Architect/Acoustic consultant of size 600x600mm, 600x1200mm, 600x1800mm, or 600x2400mm providing a minimum sound absorption level of 0.90 NRC. Glass fiber panels having FR rating Class 1 and P. Installation of Acoustic Fabric panels over Impaler clips with construction adhesive. Fabric Wrapped Acoustic Wall Panel fixing as per the instructions lay down by the manufacturer.
- Thickness: of the Panels 25/40/50mm or as per choice.
- Finish: Variety of shades. Having 20+ colour option available.
Technical Parameter:
- Core- Glass Fiber
- Edge of The Wall Panels- Square/Tapered with wood back both the option available
- Density- 96-120kg/m3
- NRC Value-0.90
- RH- 85
- Fire Rating- Class 1 & P
- Light Reflection- Colour Dependent
